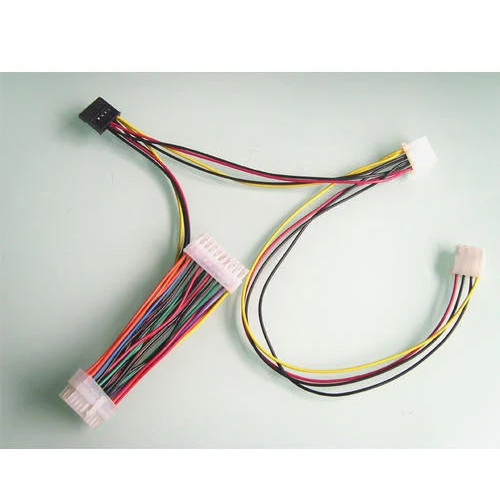

Telecom Wiring Harness

Name: Telecom Wiring Harness
Brand: PARSHVA AUTOCOMP PRIVATE LIMITED
Price: 300.0 INR
Availability: InStock

Price 300.0 INR/ Piece

Get a Price/Quote

MOQ : 10000 Pieces

Telecom Wiring Harness Specification

Temperature
-20C to +80C

Connector Type
Molex/Customized Connectors

No Of Core
4, 6, 8, 12 Cores

Cable Length
Up to 5 meters

Conductor Type
Stranded

Product Type
Telecom Wiring Harness

Material
PVC and Copper

Function
Signal and Power Transmission

Usage
Industrial

Voltage Surge
Up to 1.5 kV

Frequency (MHz)
DC to 100MHz

Rated Voltage
300V

Rated Current
5A

Cable Capacity
Up to 12 core

Insulation Material
Polyvinyl Chloride (PVC)

Conductor Material
High purity copper

Length
Customizable (Standard 1-5 meters)

Size
Different Available

Color
Multicolour

Diameter
4mm to 14mm

Application
Data and Voice Cabling

Cable Jacket Material
UV Resistant PVC

Insulation Resistance
>1000 Mkm

Mounting Type
Panel/Chassis Mountable

Test Voltage
2000V AC/min

Mechanical Strength
High

Packaging
Roll/Bundle/Carton

Flexibility
Excellent for Routing

Flame Retardant
Yes

OEM Available
Yes

Shielding
Optional (Foil/Braided)

RoHS Compliance
Yes

Telecom Wiring Harness Trade Information

Minimum Order Quantity
10000 Pieces

Delivery Time
7-10 Days

About Telecom Wiring Harness

A telecom wiring harness is a customized, organized assembly of cables, wires, and connectors designed to transmit power and signals between communication equipment like routers, switches, and base stations. These assemblies bundle, shield, and route electrical signals to ensure reliable, high-speed connectivity and data transfer while reducing clutter and EMI interference.

Key Aspects of Telecom Wiring Harnesses

Purpose: To provide efficient, reliable power and data signal transmission in networking infrastructure.
Components: Consists of bundles of wires, cables, terminals, connectors, and protective covering like tape, conduit, or sleeves.
Applications: Commonly used in data centers, network cabinets, base stations (BTS), and communication sites.
Customization: Tailored to specific network architecture, including specialized pin layouts, connector types, and lengths.
Durability: Engineered to withstand environmental factors, ensuring long-term performance in harsh environments or high-EMI (electromagnetic interference) conditions.
Benefits: Simplifies installation through a "drop-in" design, minimizes short circuits, and optimizes space.

These harnesses are vital for ensuring that complex telecommunication systems operate without failure by maintaining signal integrity and power

High-Performance Design for Industrial Use

This telecom wiring harness is crafted for industrial contexts, boasting high mechanical strength and exceptional flexibility for superior routing convenience. With its flame retardant and UV-resistant PVC jacket, the harness is ideal for both indoor and outdoor installations. The optional foil or braided shielding ensures effective signal integrity, making it suitable for diverse industrial data and voice transmission applications.

Customizable and Reliable Connections

Engineered with high-purity copper conductors and available in a range of core counts (4, 6, 8, 12) and diameters, this harness can be precisely tailored to fit various requirements. Its compatibility with Molex and customizable connectors, along with flexible mounting types (panel/chassis), further boosts installation versatility and ease.

Compliant, Safe, and Durable Solutions

RoHS compliance, high insulation resistance, and the ability to withstand 2000V AC test voltages ensure these harnesses meet strict quality standards. Ideal for distributors, manufacturers, service providers, and wholesalers in India, they offer safe, long-lasting performance across a wide temperature spectrum, making them a reliable solution for data and power applications.

FAQ's of Telecom Wiring Harness:

Q: How does the flame-retardant feature benefit the telecom wiring harness in industrial settings?

A: The flame-retardant property minimizes the risk of fire propagation, providing enhanced safety in industrial environments where electrical hazards may be present. This makes the harness suitable for installations that demand strict fire safety compliance.

Q: What types of shielding are available, and when should I choose them?

A: The harness offers optional foil or braided shielding to protect signals from electromagnetic interference. Choose shielding if your installation is in an environment with high electrical noise or where optimal signal clarity is critical.

Q: Where can this telecom wiring harness be installed?

A: It is designed for panel or chassis mounting and suits a wide variety of industrial settings, both indoors and outdoors, due to its UV-resistant and durable PVC jacket.

Q: What is the process for customizing length, connector type, or core configuration?

A: Simply specify your requirements including the desired length (up to 5 meters standard), connector type (Molex or customized), and core count (4, 6, 8, or 12). OEM services are available to provide tailored solutions as per project specifications.

Q: How does the harness maintain reliable insulation and flexibility?

A: By using high-purity copper conductors with stranded construction and polyvinyl chloride insulation, the harness achieves superior insulation resistance (>1000 Mkm) and excellent flexibility, making it easy to route even in tight spaces.

Q: What are the main benefits of using this wiring harness in data and voice cabling?

A: This harness ensures high signal integrity, robust power delivery, and long-term reliability. Its high mechanical strength, flexibility, and customizable features meet the diverse demands of modern data and voice cabling projects.

Q: Who can supply or distribute this telecom wiring harness in India?

A: The product is available through leading distributors, manufacturers, service providers, suppliers, traders, and wholesalers throughout India, catering to various industrial cabling needs.
