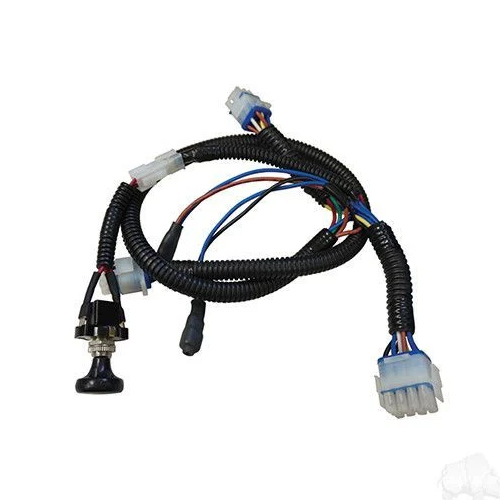

Electric Car Wire Harness

Price 300.0 INR/ Piece

Get a Price/Quote

MOQ : 10000 Pieces

Electric Car Wire Harness Specification

Product Type
Electric Car Wire Harness

Material
Plastic

Usage
Automobile

Rated Voltage
60V DC,25V AC Volt (V)

Size
Different Available

Color
Black

Electric Car Wire Harness Trade Information

Minimum Order Quantity
10000 Pieces

Delivery Time
7-10 Days

About Electric Car Wire Harness

An electric vehicle (EV) wire harness is a complex, engineered bundle of high-voltage cables, low-voltage wires, and connectors that serves as the "nervous system," transferring power and data between the battery, motor, inverter, and sensors. UKB Electronics These systems ensure safe, efficient operation while managing high-voltage (400V-800V+) distribution.

Key Components and Types

High-Voltage (HV) Harnesses: Specialized, thick, usually orange-colored cables that transmit power from the battery pack to the inverter and motor. These require robust shielding against electromagnetic interference (EMI).
Low-Voltage (LV) Harnesses: Typically 12V looms that connect sensors, infotainment, and electronic control units (ECUs).
Data & Communication Harnesses: Carry data across vehicle networks (e.g., CAN bus) for the Battery Management System (BMS).
Connectors and Terminals: Specially designed components to handle high current, often with sealing to prevent water and debris ingress.

Key Features of EV Harnesses

High-Voltage Resistance: Built to withstand 400V to 800V or higher.
Electromagnetic Compatibility (EMC): Shielding is crucial to prevent high-voltage lines from interfering with sensitive, low-voltage electronic systems.
Environmental Protection: Cables must be shielded from heat, moisture, vibration, and road debris.
Durability: Components are designed for heat resistance, as larger wires used to reduce IR losses can generate significant heat.
