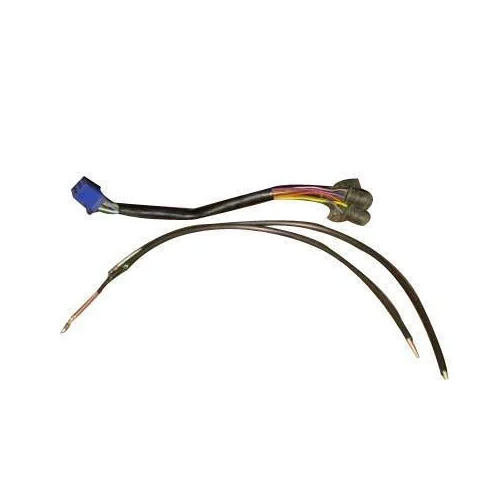

Small pig tail Wiring Harness

Name: Small pig tail Wiring Harness
Brand: PARSHVA AUTOCOMP PRIVATE LIMITED
Price: 100.0 INR
Availability: InStock

Price 100.0 INR/ Number

Get a Price/Quote

Small pig tail Wiring Harness Specification

Connector Type
Copper/PVC

Conductor Type
copper/PVC

Cable Length
10 Meter (m)

Temperature
100 Fahrenheit (oF)

No Of Core
up to 8 cores

Power Rating
10AMP

Product Type
Small pig tail Wiring Harness

Function
Automobile

Usage
Industrial

Voltage Surge
48

Frequency (MHz)
50 Hertz (HZ)

Cable Capacity
20 Ampere (amp)

Rated Voltage
48-60 Volt (V)

Insulation Material
Automobile

Usage & Applications
Automobile

Conductor Material
power & Singles Distributions

Cable Type
copper/pvc

Operating Temperature
100 Fahrenheit (oF)

Length
10 Meter (m)

Display Type
clear

Size
Different Available

Phase
3PH

Material
copper/pvc

Features
power & Singles Distributions

Conductor
copper/pvc

Rated Current
10 Ampere (amp)

Frequency
50 Hertz (HZ)

Color
Black

Warranty
1 years

Diameter
2 Centimeter (cm)

Application
power & Singles Distributions

Small pig tail Wiring Harness Trade Information

Minimum Order Quantity
10000 Number

Delivery Time
5 Days

About Small pig tail Wiring Harness

A small pigtail wiring harness is a short, flexible cable assembly, typically 624 inches long, featuring a pre-installed connector on one end and stripped wire leads (pigtails) on the other. Designed for easy, solderless, or crimped installation in tight spaces, they are commonly used in automotive, industrial, and home electrical systems to connect sensors, lights, and modules.

Key Features and Description

Structure: Comprises a molded plastic connector (often 25 pins) connected to color-coded wires (typically 1224 AWG), allowing for quick identification and installation.
Connector End: Houses a female or male plug designed for specific devices (e.g., relays, sensors, trailer lights).
Pigtail End: Features bare, stripped wire ends ready for splicing, twisting, or crimping into existing wiring.
Durability: Often weatherproofed (especially automotive versions) with durable insulation, sometimes pre-filled with dielectric grease to prevent moisture ingress.
Use Cases: Essential for repairing broken connectors, adding auxiliary lighting, or providing a flexible bridge between fixed wiring and components.

Common Applications

Automotive: Airbag systems, battery management, transmission controls, electric power steering, sensors, switches, lighting (fog lights, interior), and ADAS systems.
Industrial/Electrical: Connecting motors, controlling electrical devices, and replacing damaged component wiring.
Home: Wiring switches, outlets, or GFIs where multiple wires connect to a single terminal.

These harnesses are favored for their ability to provide secure, vibration-resistant connections.
