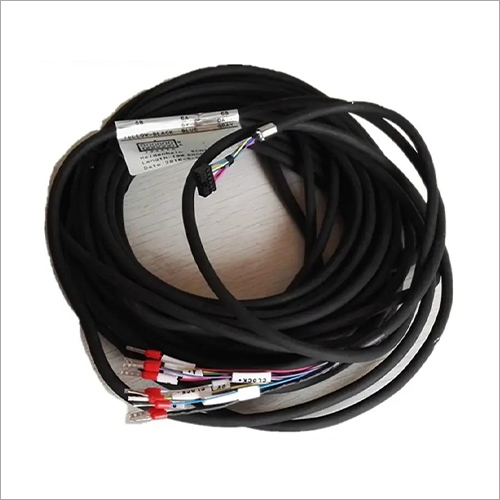

Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness
Encoder Harness

Encoder Harness

Price 800.0 INR/ Number

Encoder Harness Specification

  • No Of Core
  • 3PH
  • Cable Length
  • 10 Meter (m)
  • Temperature
  • 50 Celsius (oC)
  • Conductor Type
  • copper/pvc
  • Connector Type
  • copper/PVC
  • Power Rating
  • 10AMPS
  • Product Type
  • Harness
  • Function
  • Transmits electrical pulses (A, B, Z channels) representing mechanical rotation or linear displacement.
  • Usage
  • Industrial
  • Voltage Surge
  • 48-60
  • Frequency (MHz)
  • 50 Hertz (HZ)
  • Cable Capacity
  • 15 Ampere (amp)
  • Insulation Material
  • PVC
  • Rated Voltage
  • 48-60 Volt (V)
  • Usage & Applications
  • Transmits electrical pulses
  • Operating Temperature
  • 100 Celsius (oC)
  • Cable Type
  • copper/pvc
  • Conductor Material
  • copper/pvc
  • Length
  • 10 Meter (m)
  • Size
  • 10
  • Display Type
  • Clear
  • Phase
  • 3ph/1ph
  • Features
  • Transmits electrical pulses
  • Material
  • copper/pvc
  • Conductor
  • copper/pvc
  • Frequency
  • 50 Hertz (HZ)
  • Color
  • BLACK/BULE/YELLOW
  • Rated Current
  • 10 Ampere (amp)
  • Warranty
  • 1 YEARS
  • Diameter
  • 2 Centimeter (cm)
  • Application
  • Transmits electrical pulses


Encoder Harness Trade Information

  • Minimum Order Quantity
  • 10000 Number
  • Payment Terms
  • Cheque
  • Supply Ability
  • 20 Per Month
  • Delivery Time
  • 5 Days
  • Main Domestic Market
  • All India


About Encoder Harness

Our encoder harness is a wiring assembly designed specifically for connecting encoders to their respective control systems or devices. Encoders are electronic devices used for measuring and converting mechanical motion or position into electrical signals. This harness consists of specialized cables and connectors that facilitate the transmission of precise signals between the encoder and the control system. It ensures accurate and reliable communication, allowing the control system to accurately monitor the position or speed information provided by the encoder. The encoder harness is crucial for maintaining the integrity of the encoder signals, enabling precise control and feedback in various applications such as robotics, automation, & motion control systems.
An encoder harness is a specialized cable assembly that connects rotary or linear encoders to control systems (PLC, drives, or counters) to transmit precise motion feedback data, such as position, speed, and direction. These harnesses ensure signal integrity between the sensor and control unit, typically featuring shielded, multi-conductor cables for applications like robotics, automation, and electric motors.
Key Features and Components:
  • Purpose: Transmits electrical pulses (A, B, Z channels) representing mechanical rotation or linear displacement.
  • Construction: Comprised of specialized connectors on both ends and often shielded cable to prevent noise interference in industrial environments.
  • Signal Types: Supports incremental (channels A/B/Z), absolute, and sometimes commutation tracks (U/V/W).
  • Applications: Essential for motor feedback, conveyor systems, robotic arms, and CNC machinery.
  • Types: Can include standard, high-flex (for robotic arms), or heavy-duty cables depending on the environment.
Common connectors used in these assemblies include Sub-D, M12, or military-style (MS) connectors, selected based on environmental protection needs.
