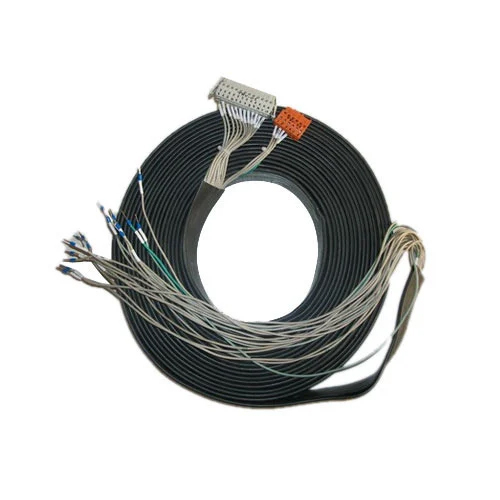

Elevator Harness

Name: Elevator Harness
Brand: PARSHVA AUTOCOMP PRIVATE LIMITED
Price: 2200.0 INR
Availability: InStock

Price 2200.0 INR/ Piece

Get a Price/Quote

MOQ : 10000 Pieces

Elevator Harness Specification

Connector Type
COPPER

Cable Length
20 Meter (m)

No Of Core
UP TO 8

Conductor Type
COPPER

Temperature
55 Celsius (oC)

Product Type
Elevator Harness

Power Rating
20AMP

Function
to transmit power and control signals between elevator components

Usage
commercial/Industrial

Voltage Surge
440

Frequency (MHz)
50 Hertz (HZ)

Cable Capacity
20 Ampere (amp)

Rated Voltage
20 Ampere (A)

Insulation Material
PVC

Usage & Applications
to transmit power and control signals between elevator components

Cable Type
COPPER/PVC

Conductor Material
COPPER

Operating Temperature
35 Celsius (oC)

Length
20 Meter (m)

Display Type
CLEAR

Size
Different Available

Phase
3PH

Color
Black

Rated Current
20 Ampere (amp)

Frequency
50 Hertz (HZ)

Conductor
COPPER

Material
COPPER/PVC

Features
to transmit power and control signals between elevator components

Warranty
1 YEAR

Diameter
2 Centimeter (cm)

Application
to transmit power and control signals between elevator components

Elevator Harness Trade Information

Minimum Order Quantity
10000 Pieces

Delivery Time
7 Days

About Elevator Harness

Elevator harnesses are specialized, bundled cabling systems (copper with PVC insulation) designed to transmit power and control signals between elevator components like cabins, doors, and control panels. These durable, flame-retardant, and often plug-and-play assemblies enhance safety, reduce installation time, and ensure reliable movement.

Key Features and Benefits

Safety & Reliability: Manufactured with high-quality, flame-retardant materials, these harnesses are designed to handle constant motion, vibration, and high voltage (often $\ge$600V).
Installation Efficiency: Plug-and-play designs allow for rapid installation with minimal on-site wiring or specialized tools.
Structure: They often feature double shielding (aluminum foil and braided) for anti-interference, with customizable lengths up to 10 meters.
Components: Includes connectors for door systems, cabin operating panels, and, in some cases, safety components like pit stop switches.

Common Types

Door Harnesses: Specifically engineered for, and critical to, the reliable operation of elevator doors.
Traveling Cables: Specialized harnesses designed to withstand the constant flexing and tension of the elevators movement within the hoistway.
Control/Signal Harnesses: Connect the main controller to cabin operating panels and hall calls.

These systems are used in various elevator types, including passenger, freight, and hydraulic, providing crucial, uninterrupted power.
